Your modular photo studio system for maximum flexibility

Modulares Kit mit Drehteller, Beleuchtung und Systemtisch für 360°-Produktfotografie

Components for individual 360° solutions

Our XY IMAGER KITS offer maximum freedom when assembling your photo studio equipment.
Whether as an extension of an existing studio or as a targeted retrofit of individual components – all modules are perfectly coordinated and freely combinable.

Ideal for companies with limited space, existing infrastructure, or special requirements.
You decide what you need – we provide the technology.

Request a custom kit now

Your advantages at a glance

Symbol für individuelle Systemanpassung

Modular system concept

Assemble your studio flexibly from turntable, light tent, lighting and control system.

Retrofitting made easy

Ideal for integration into existing studios, showrooms or temporary setups.

Symbol für verlässliche Systemlösungen

Technically compatible

All components come from our proven Car and Moto Studio series.

Quick setup, no pit required

The turntable is installed directly on level ground – without any floor modification.

Optimized light guidance

Lighting systems with high CRI value and optional photoresist for perfect diffusion.

Production in Austria

Robust workmanship, short delivery routes, tested quality – developed and manufactured in Salzburg.

Here's how it works –
your path to the right kit

1.

Define use case

Do you need a 360° turntable, a light tent, additional lighting – or all of the above?

2.

Configure kit individually

Together we will put together the right combination, adapted to space, vehicle type and target image.

3.

Easy assembly & setup

All components are delivered ready for assembly – and can be used immediately and expanded as well.

Our components at a glance

XY IMAGER Drehteller mit holzfarbener Oberfläche, industriellem Antrieb und Steuergerät

Turntable

  • Height: 56 mm, Diameter: between 3 and 7 m
  • Load capacity up to 4,000 kg
  • Base made of stainless steel, top made of screen printing plates
  • Fully automatic control
  • Externally mounted industrial motor
  • Can be mounted on level ground – no installation required
Schwarze Auffahrtsrampe zwischen Drehteller und Lichtzelt für komfortables Einfahren

Access ramp

  • Adapted to the turntable diameter
  • Comfortable entry – no contact with tires or rims
  • Made of stainless steel with a high-quality look
  • Platform segment between turntable and light tent made of screen printing plates
Weißes Lichtzelt mit Aluminiumrahmen und transluzentem Diffusorstoff für gleichmäßige Ausleuchtung

Lightbox

  • Outer diameter: up to 10 m
  • Height: up to 4 m
  • Stable steel and aluminum construction
  • Wall made of translucent diffuser fabric, specially developed for automotive photography
  • Ensures even illumination and reliably reduces reflections

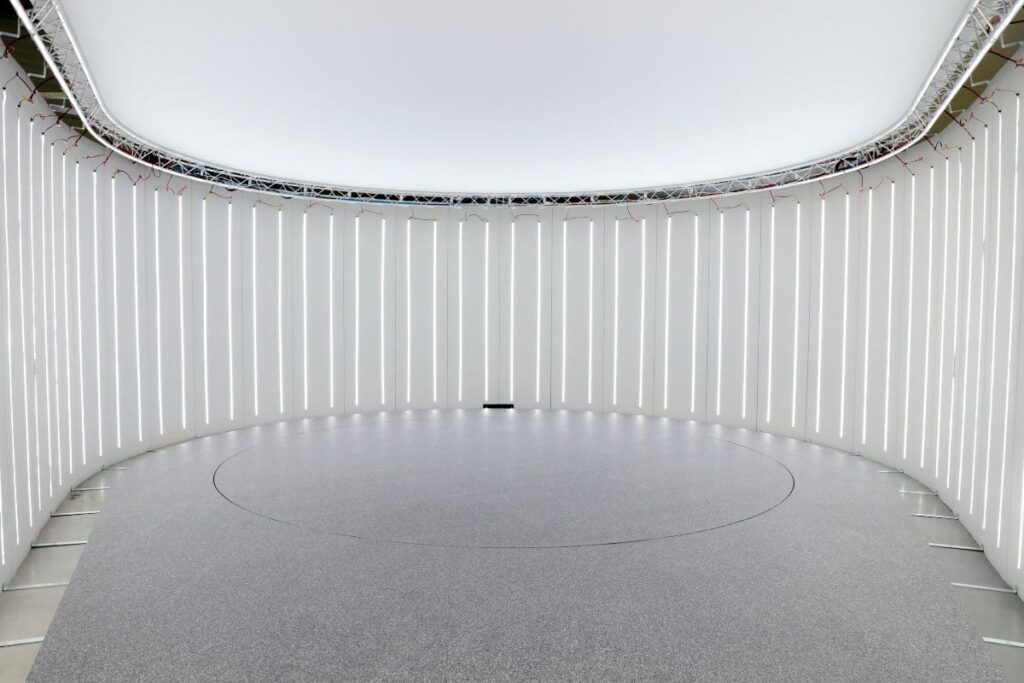

Rundum-LED-Beleuchtung mit vertikalen Lichtstreifen für studioartige Produktfotografie

Lighting

  • Up to 100 LED strips with a length of up to 3.5 m
  • Luminous intensity: 2,000 lumens per meter
  • Power: 15 W/m
  • Color temperature: 6,000 K
  • Color rendering index (CRI): >92
  • Lifespan: over 50,000 hours
  • Including aluminum wall

Häufige Fragen (FAQ)

Yes – all modules can be retrofitted and are fully compatible with existing systems.

A flat surface with a power outlet is sufficient. The turntable does not need to be recessed into the floor.

The kits are generally portable, but assembly and disassembly are time-consuming. Therefore, their use is recommended for fixed locations or longer-term setups.

Please contact us – we will gladly check whether your existing technology is compatible with our components.

Yes – the kit is suitable for all vehicle types and is individually tailored to your requirements. For cars and SUVs, we also recommend our Car Studio; for motorcycles, mopeds, ATVs, and similar vehicles, our Moto Studio.
